Heavy-Duty Skid Steer Tree Spades – 3-Blade & 4-Blade Models
Transform your skid steer into a high-speed, labor-saving tree transplanting machine with these powerful and efficient tree spades. Designed for seamless operation, these spades allow trees to be dug and transplanted without the operator ever leaving the cab, improving efficiency and safety. With overlapping cutting blades for clean root cutting and secure root ball support, these spades deliver precision and durability for any transplanting job.
Key Features:
Transplant Without Leaving the Cab – Operate the spade entirely from your skid steer for fast and effortless tree relocation.
Complete Hydraulic System – Comes fully assembled with hydraulic hoses, couplers, and controls for quick installation and immediate use.
Handles Various Tree Sizes –
3-Blade Model: Transplants hardwoods up to 2.5” and evergreens up to 3” in diameter.
4-Blade Model: Transplants hardwoods up to 3” and evergreens up to 4” in diameter.
Heavy-Duty Cutting Blades –
3-Blade Model: 3/8” thick A36 steel for superior strength.
4-Blade Model: 1/4” Grade 50 steel for enhanced durability and precision.
Adjustable Root Ball Size –
3-Blade Model: Up to 30” root ball diameter, 29” depth.
4-Blade Model: Up to 40” root ball diameter, 30” depth.
Swing-Open Outside Towers – Allows for easy positioning around trees and simplifies operation.
Versatile Hydraulic Compatibility – Works with hydraulic flow rates from 5-25 GPM at 2,500 psi, ensuring compatibility with a wide range of skid steers.

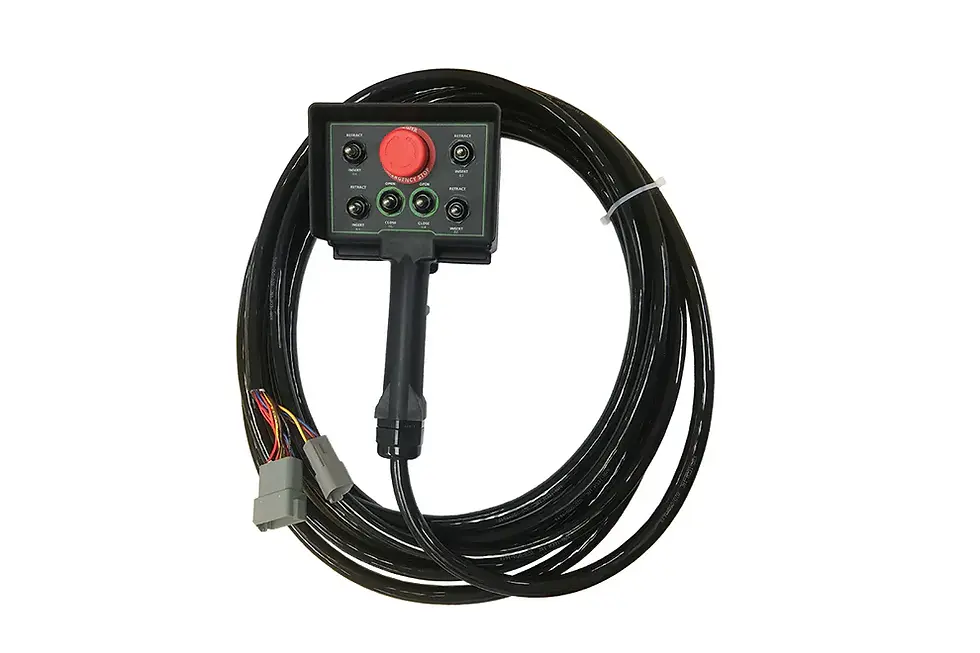

Multiple Control Options – Available with wired or wireless external control systems for added convenience.
Specifications:
Model
Blades
Tree Size (Evergreens)
Tree Size (Hardwoods)
Root Ball Diameter
Root Ball Depth
Hydraulic Flow
Blade Thickness
Shipping Weight
3-Blade (901165)
3
3”
2.5”
30”
29”
5-25 GPM @ 2,500 psi
3/8” A36 Steel
1,500 lbs.
4-Blade (901166)
4
4”
3”
40”
30”
5-25 GPM @ 2,500 psi
1/4” Grade 50 Steel
1,900 lbs.
Designed for Precision and Durability
Built for commercial landscapers, tree nurseries, and property managers, these tree spades provide a reliable and high-efficiency solution for transplanting trees with minimal disruption to their root systems. The short-frame design reduces the need for stabilizers and counterweights, making them easy to maneuver in tight spaces. Whether you’re relocating trees for landscaping, land conservation, or reforestation, these heavy-duty skid steer tree spades ensure a smooth, damage-free transplanting process.
